Product Description

1.Smooth surface guarantees cleanliness, also while disinfecting the products.

2.The length of BHU can be customized as per customers' request.

3.The location of gas and electrical components are designed as per customer's requirements.

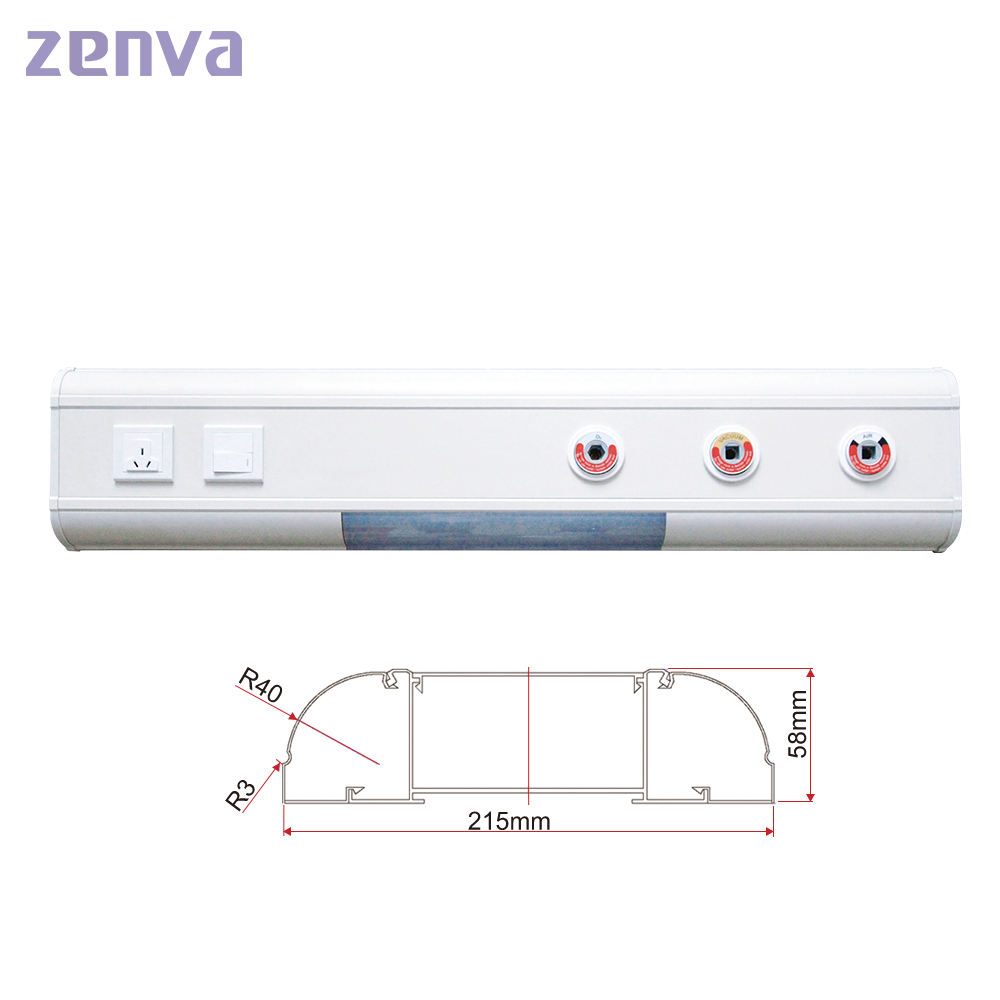

4.Wall section is made of extruded aluminium.

5.Extruded aluminium structural lower channel includes a vertical integrate equipment mounting track to support optical track mounted equipment.

6.Optional equipment like I.V. hook, infusion pole, utility basket, monitor tray and others can be installed into the track Gas outlets/switch-socket monitor socket/nurse call system.

7.can be custom fitted based on the customer’s requirement.

Detailed Images

Name Medical bed head unit.
Installing Mounted wall horizontal.
Material Aluminium alloy.
Length Universal 1.0m, but 1.2m, 1.4m, 1.6m, 2.0m and so on.
Technical Surface with static electricity painting.
Appearance Beautiful and wear-resistant, easy to clean.
Structure Three cavities for different pipelines, Separate the electric with the gas outlets. Safe and reliable.
Gas outlets O2, Vacuum, Air, N2O, CO2, AGSS, etc. according to different requirement With different standards. like British/french/South African/American/German, etc.
Size Different model, the size is different.
Test All the gas outlets pass 100% air tightness test ( if need our gas outlets ).
Use Supply the gas outlets, power sockets, etc in the hospital.
Optional equipment Head lamp, reading lamp and other lamp, communicate system ( RJ15, RJ45 ) and some sockets.
Notice Requirement different specification, price will be different.
