Medical Equipment LED Shadowless Surgical Lamp Operating Room Light
Product Video

Medical Equipment LED Shadowless Surgical Lamp Operating Room Light

  • OT Light

Inquire Now

Mobile Operating Illuminating Lamp Type Surgical LED Lamp

Mani Features:

Leading technology,choosing monochrome and phosphor coated OSRAM LED bulb,most in line with the harsh requirements of surgical lighting and able to produce pure and natural white light,provide a sharp and constant spot,also never produce color bulbs caused by color trim and rainbow effect.

Detailed Technical Parameter:

Technical data

EXLED7500M

Head Diameter(mm)

700

Light intensity Lux at 1 meter distance(Max)

160000

Colour rendering index Ra

≥97

Diameter of spot(incm)

≥28cm

Colour temperature(Kelvin)

4500±500

Adjust range

 10-100%
 Life-span of the LED  >50000h

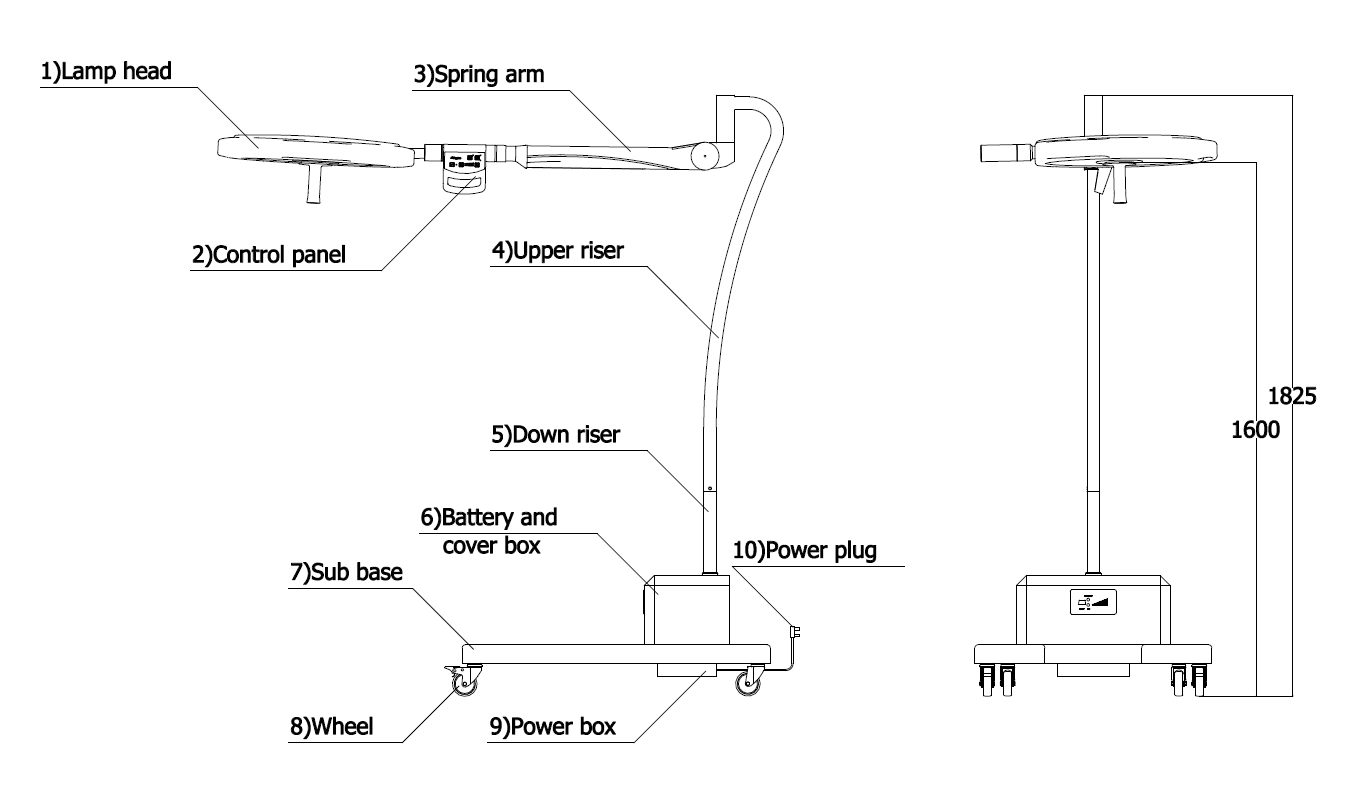

Structure Diagram

Mobile Operating Illuminating Lamp Type Surgical LED Lamp

Product Functions Description:

1.Product Functions Description

EXLED Operating Lamp with Laminar Flow

Disturbance design to make fresh laminar air available to moves easily along the streamline of the operating lamp.

Mobile Operating Illuminating Lamp Type Surgical LED Lamp

2.Illumination and illumination depth adjust freely

Lighting in the range of 10%-100% can be freely adjusted ,it adopts unique optical and focusing technology to produce super-long illumination depth of 800-1500mm.

Mobile Operating Illuminating Lamp Type Surgical LED Lamp

3.Color Temperature(optional)

The lamp color temperature was controlled at 4000-500K,which is the natural white light needed in the operation, the patient’s department is presented clearly

Mobile Operating Illuminating Lamp Type Surgical LED Lamp

4.The electric light spot focusing(standard)

control modules are set on the lamp, the touch switch is connected with the control module. When touching the touch switch,it controls different projection angles to realize the adjustment of the light spot.

Mobile Operating Illuminating Lamp Type Surgical LED Lamp

5. Automatic Shadow Management Model(optional)

Providing automatic brightness compensation for blocked light sources to maintain the best shadowless effect for surgeons.

Mobile Operating Illuminating Lamp Type Surgical LED Lamp

6.Standard and LCD control panel(optional)







Mobile Operating Illuminating Lamp Type Surgical LED Lamp

7.amera And Monitor(optional)

Camera and monitor brand:Sony

HD CCTV 20xZoom Box Camera

 8.Osram bulb and Germany ondal spring arm.




Production Process

Mobile Operating Illuminating Lamp Type Surgical LED Lamp


Package And Shipping

Mobile Operating Illuminating Lamp Type Surgical LED Lamp
